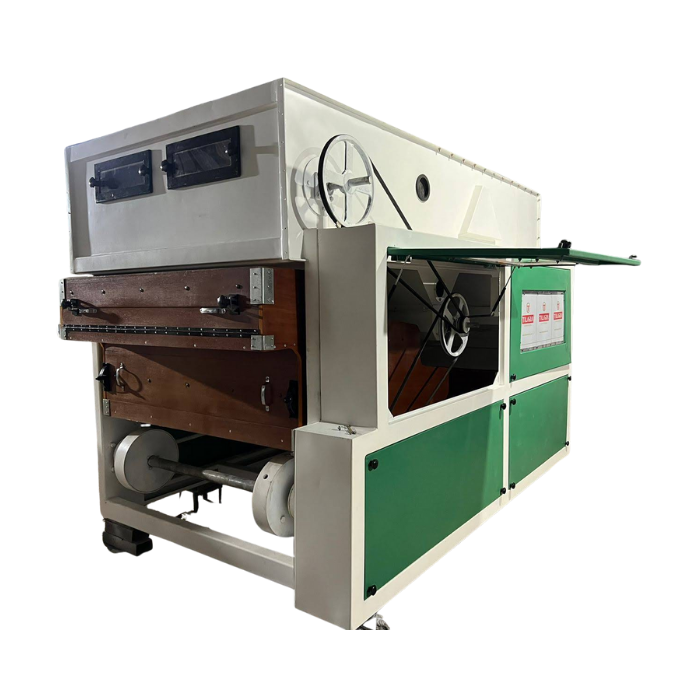

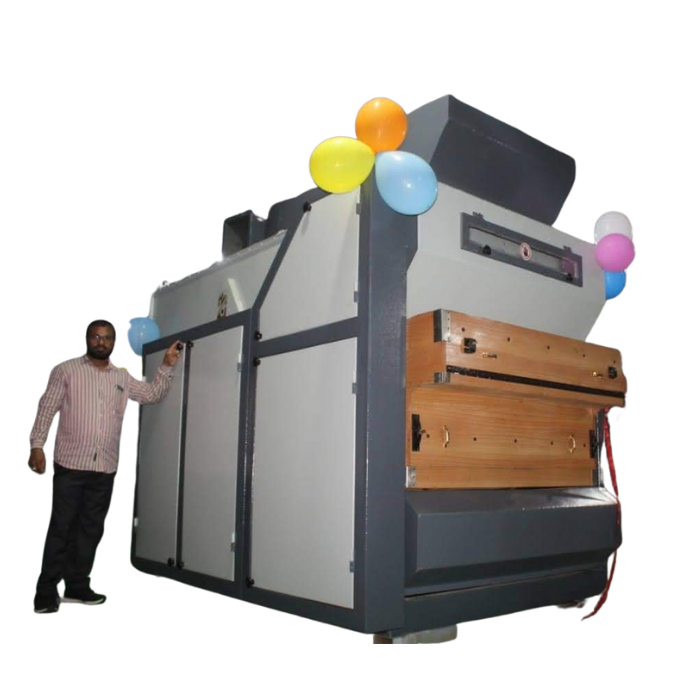

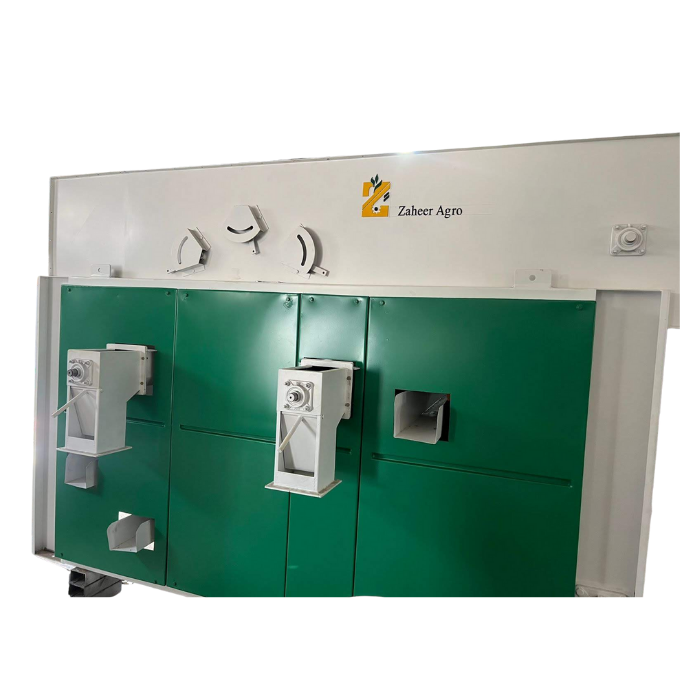

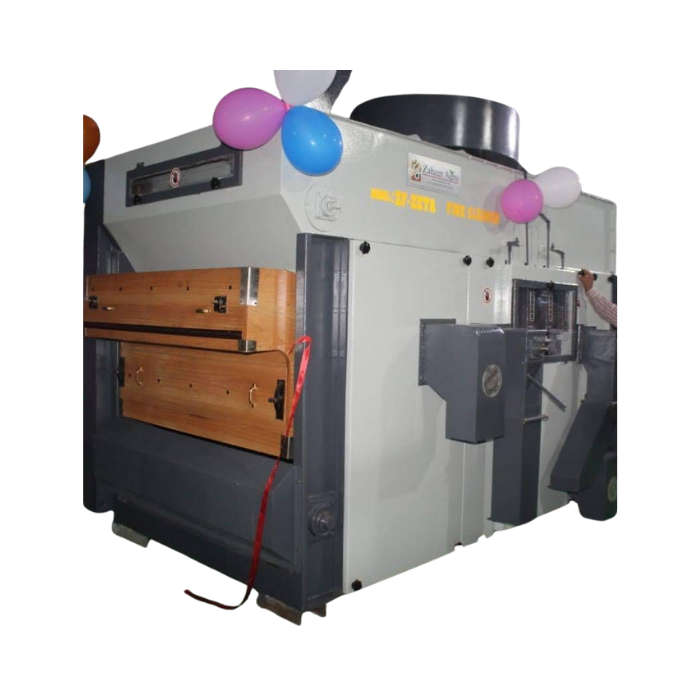

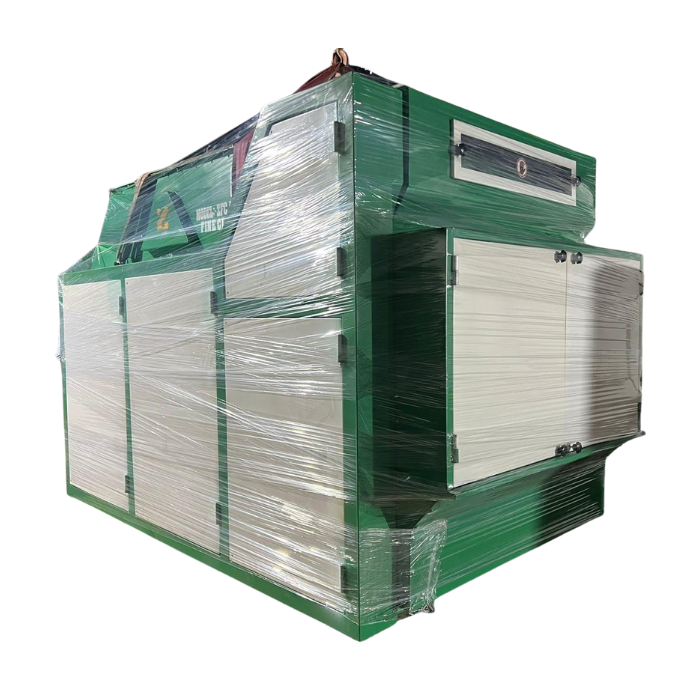

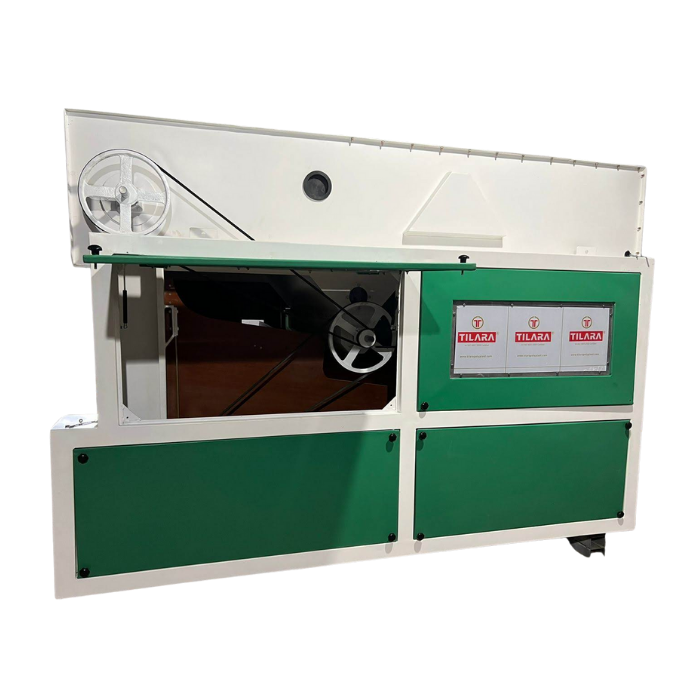

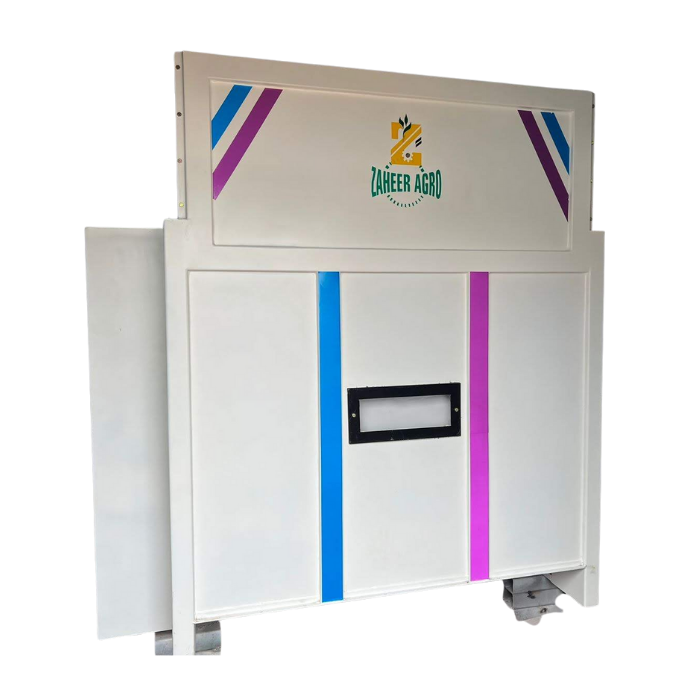

The Fine Cleaner – Zeta Model is a high-efficiency air and screen cleaning system designed to remove dust, husk, chaff, broken grains, light impurities, and oversized particles from a wide range of grains and seeds.
Engineered for consistent performance and durability, the Zeta Model is ideal for commercial grain processing units, seed plants, and food industries where clean output and equipment protection are critical.
Suitable Applications
-
Rice milling units
-
Wheat & flour mills
-
Maize & corn processing
-
Pulse & dal mills
-
Seed cleaning & grading plants
-
Grain storage and handling systems
Key Features
-
✅ High cleaning efficiency with minimal grain loss
-
✅ Dual system: air aspiration + vibrating sieves
-
✅ Adjustable airflow for different crops
-
✅ Heavy-duty vibration mechanism
-
✅ Low power consumption
-
✅ Stable, continuous operation
-
✅ Easy screen replacement & maintenance
Working Principle
The Zeta Model Fine Cleaner operates using a two-stage cleaning process:
-
Air aspiration removes dust and light impurities
-
Vibrating screens separate oversized and undersized materials
-
Clean grain flows uniformly through the main outlet
This ensures effective pre-cleaning and fine cleaning before further processing.
Technical Specifications (Indicative)
| Parameter | Details |
|---|---|
| Model | Zeta |
| Capacity | 3 – 10 Ton per Hour |
| Power Requirement | 3 – 7.5 HP |
| Cleaning System | Air + Screen |
| Screen Layers | 2 / 3 (Optional) |
| Voltage | 380V / 415V |
| Operation | Continuous |
| Construction | Mild Steel / SS Contact Parts (Optional) |
Specifications can be customized based on capacity and grain type.
